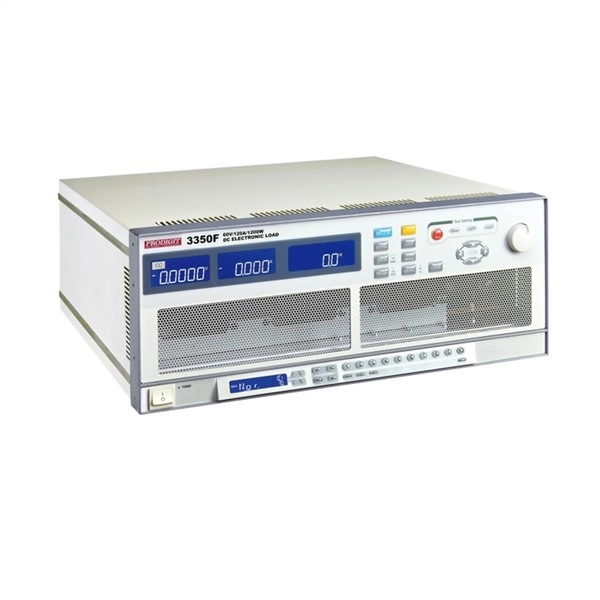

PRODIGIT 3350F SERIES 고전력 DC전자로드
PRODIGIT 3350F SERIES High Power DC Electronic Load
MODEL
3350F 3351F 3352F 3353F 3354F 3356F 3350F-06 3351F-05 3352F-05 3353F-06 3354F-06 3356F-05 3356F-06 3356F-07
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
프로디지트 ・ PRODIGIT
3350F SERIES
고전력 DC전자로드
3350F SERIES High Power DC Electronic Load
DESCRIPTION
- 3350F has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232、USB and LAN interface.
- SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
- Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
- Single key for OCP 、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
- Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
- 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.
- Short, OCCP and OCDP function test for BMS protection board is provided (option)
FEATURES
- 5 digit V / A / W Meter.
- High -speed measurement and communication transmission.
- Large LCD Display、setting values can be adjusted by rotary knob or push button.
- Voltage、Current and Watt value can be displayed simultaneously.
- OCP、OPP test function.
- Power ON status can be set.
- CC, CR, CV, CP, Dynamic and Short operation mode.
- SHORT time setting.
- Protections against V,I,W, and ℃.
- Voltage meter display the polarity positive（”＋”）or negative（”－”）is selectable.
- Optional Interface：GPIB、RS232、USB、LAN.
- Function test for BMS protection board is provided (option)
- New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads
APPLICATIONS
- Voltage / Current source
- SMPS transient response
- CV/Current limit testing and battery emulation
- Battery charger
- Battery discharge
- R&D Quality Control
- ATE system
- Production testing
3351F 3352F 3353F 3354F 3356F 3350F-06 3351F-05 3352F-05 3353F-06 3354F-06 3356F-05 3356F-06 3356F-07 3350F 06 3351F 05 3352F 05 3353F 06 3354F 06 3356F 05 3356F 06 3356F 07 3350F 3350F SERIES 3350F PRODIGIT PRODIGIT 3350F 3350F 프로디지트 프로디지트 3350F 3350F SERIES PRODIGIT PRODIGIT 3350F SERIES 3350F SERIES 프로디지트 프로디지트 3350F SERIES PRODIGIT 3351F PRODIGIT 3352F PRODIGIT 3353F PRODIGIT 3354F PRODIGIT 3356F PRODIGIT 3350F-06 PRODIGIT 3351F-05 PRODIGIT 3352F-05 PRODIGIT 3353F-06 PRODIGIT 3354F-06 PRODIGIT 3356F-05 PRODIGIT 3356F-06 PRODIGIT 3356F-07 PRODIGIT 3350F 06 PRODIGIT 3351F 05 PRODIGIT 3352F 05 PRODIGIT 3353F 06 PRODIGIT 3354F 06 PRODIGIT 3356F 05 PRODIGIT 3356F 06 PRODIGIT 3356F 07
■ 제품 사양 (Specifications)
PRODIGIT 3350F 제품 데이터시트의 핵심 사양입니다.
- homogeneous materials in the parts is above the relevant threshold of the SJ/T 11363-2006 standard.
- This product is a Safety Class 1 instrument (provided with a protective earth terminal). The
- environments. It is designed to operate at a maximum relative humidity of 80% and at altitudes of
- up to 2000 meters. Refer to the specifications tables for the ac mains voltage requirements and
- currents in excess of 5.0 mA peak.
- Complies with the essential requirements of the Low Voltage Directive 2006/95/EC and the EMC
- 3350F Series High Power Electronic load operation manual
- Fig 2-9 The relationship of load current load ON/OFF, load level and output voltage of DC
- The 3350F Series Electronic Load is designed to test, evaluation and burn-in of DC power
- The 3350F Series electronic load can be operated for manual and GPIB operation. The
- power contour of 3350F 1200 Watts Electronic Load is shown in Fig 1-1~1-6, it has an input
- from 0-120A, and 0 -60V current and voltage operating range respectively. The power
- contour of 3350F series. The prodigit 3350F Series high power electronic Load can be
- 232C/USB/LAN. Current (CC) mode, Constant Resistance (CR) mode, and Constant Voltage
- 0.1 Current
- Fig 1-1 3350F Power Contour
- Fig 1-2 3351F Power Contour
- 0.23 Current
- Fig 1-3 3352F Power Contour
- Fig 1-4 3353F Power Contour
- 0. 0 1 . 5 1 Current
- Fig 1-5 3354F Power Contour
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
