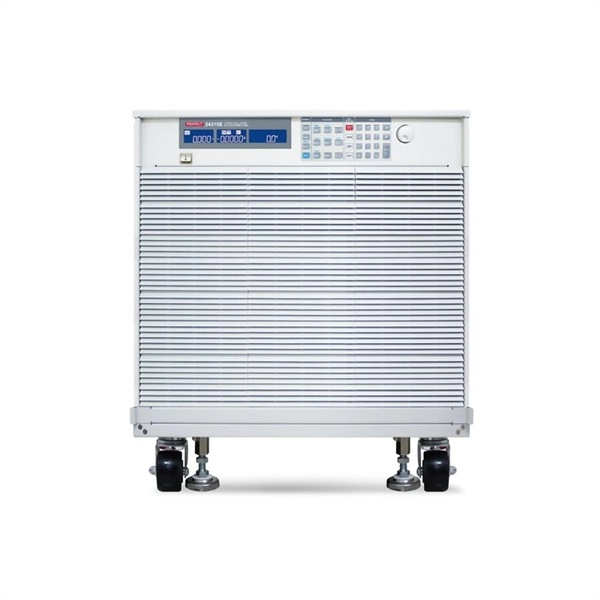

PRODIGIT 34300E SERIES 컴팩트 고전력 DC전자로드
PRODIGIT 34300E SERIES Compact High Power DC Electronic Load
- 34305E Compact High Power DC Electronic Load（1250V）1250V, 25A, 5KW
- 34310E Compact High Power DC Electronic Load（1250V）1250V, 50A, 10KW
- 34315E Compact High Power DC Electronic Load（1250V）1250V, 75A, 15KW
- 34320E Compact High Power DC Electronic Load（1250V）1250V, 100A, 20KW
- 34325E Compact High Power DC Electronic Load（1250V）1250V, 125A, 25KW
- 34330E Compact High Power DC Electronic Load（1250V）1250V, 150A, 30KW
- 34335E Compact High Power DC Electronic Load（1250V）1250V, 175A, 35KW
- 34340E Compact High Power DC Electronic Load（1250V）1250V, 200A, 40KW
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
프로디지트 ・ PRODIGIT
34300E SERIES
컴팩트 고전력 DC전자로드
34300E SERIES Compact High Power DC Electronic Load
DESCRIPTION
- 34300E Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store / Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and LAN interface.
- SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
- Dynamic can be simulated under CC, CP mode. The current Rise / Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
- Single key for OCP、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
- Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
- 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.
- Maximum Voltage up to 1250V provide an idea testing solution for Power Factor Correction test.
- Master / Slave control units maximum up to 1 MASTER, 7 SLAVE.
FEATURES
- With parallel function maximum power up to 320KW.
- Maximum up to 8 units master / slave parallel control.
- 5 digit V/A/W Meter.
- High-speed measurement and communication transmission.
- Large LCD Display、setting values can be adjusted by rotary knob or push button.
- Voltage、Current and Watt value can be displayed simultaneously.
- Capable for Power Factor Correction (PFC) Test.
- OCP、OPP test function automatically.
- Power ON status can be set.
- CC, CR, CV, CP , download.jpg CC+CV , CP+CV , Dynamic and Short operation mode.
- SHORT time setting.
- Protections against I,W,°C and over-voltage alert.
- Voltage meter display the polarity positive（”＋”）or negative（”－”）is selectable.
- Optional Interface : GPIB、RS232、USB、LAN.
- 0.7V @ 1000A is on Static condition, and the starting voltage must be greater than 5V, if on Dynamic condition that is 5V @ 1000A
- Built-in soft-start circuit function allowing the U.U.T. power supply to be directly connected to the 34300E series load input terminal, no longer need a large relay switch with an external soft-start circuit.
- New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads
APPLICATIONS
- Voltage / Current source
- SMPS transient response
- CV / Current limit testing and battery emulation
- Battery charger
- Battery discharge
- R&D Quality Control
- ATE system
- Production testing
34300E 34300E SERIES 34305E 34310E 34315E 34320E 34325E 34300E 34335E 34340E 34300E PRODIGIT PRODIGIT 34300E 34300E 프로디지트 프로디지트 34300E 34300E SERIES PRODIGIT PRODIGIT 34300E SERIES 34300E SERIES 프로디지트 프로디지트 34300E SERIES 34305E PRODIGIT PRODIGIT 34305E 34305E 프로디지트 프로디지트 34305E 34310E PRODIGIT PRODIGIT 34310E 34310E 프로디지트 프로디지트 34310E 34315E PRODIGIT PRODIGIT 34315E 34315E 프로디지트 프로디지트 34315E 34320E PRODIGIT PRODIGIT 34320E 34320E 프로디지트 프로디지트 34320E 34325E PRODIGIT PRODIGIT 34325E 34325E 프로디지트 프로디지트 34325E 34300E PRODIGIT PRODIGIT 34300E 34300E 프로디지트 프로디지트 34300E 34335E PRODIGIT PRODIGIT 34335E 34335E 프로디지트 프로디지트 34335E 34340E PRODIGIT PRODIGIT 34340E 34340E 프로디지트 프로디지트 34340E
■ 제품 사양 (Specifications)
PRODIGIT 34300E 제품 데이터시트의 핵심 사양입니다.
- 34000E Series DC load operation manual
- 2-2 CHECK LINE VOLTAGE ················································································ 15
- 2-7 POWER UP ······························································································ 16
- 2-9 GPIB & RS232 INTERFACE OPTION ································································· 17
- 2-10 RS232 INTERFACE OPTION ········································································· 18
- 2-11 GPIB INTERFACE OPTION ·········································································· 18
- 2-12 USB INTERFACE OPTION ··········································································· 18
- 2-13 LAN INTERFACE OPTION ··········································································· 18
- 2-15 LOAD CURRENT SLEW RATE SETTING ····························································· 19
- 2-16 LOAD WIRE INDUCTANCE ·········································································· 21
- 3-1. 34000E SERIES DIMENSION DESCRIPTION ·························································· 24
- 3-3. 34000E SERIES OPERATING INSTRUCTIONS (1) ··················································· 67
- 3-7. PROTECTION FEATURES ··············································································· 87
- Chapter 4 Communication Interface programming operation ········································· 89
- 4-7. COMMUNICATION INTERFACE PROGRAMMING COMMAND DESCRIPTION ······················ 103
- 5-3. CONSTANT CURRENT MODE APPLICATION ························································ 118
- 5-4. CONSTANT VOLTAGE MODE APPLICATION ························································ 120
- 5-5. CONSTANT RESISTANCE MODE APPLICATION ····················································· 121
- 5-6. CONSTANT POWER MODE APPLICATION ··························································· 122
- 5-9. CONSTANT CURRENT SOURCE OPERATING ························································ 125
- 5-10. ZERO-VOLT LOADING APPLICATION ····························································· 126
- 5-13. POWER SUPPLY OCP TESTING ··································································· 129
- 5-14. POWER SUPPLY OPP TESTING ···································································· 132
- Fig 1-2 Constant Current mode ················································································· 3
- Fig 1-3 Constant Resistance mode ············································································ 3
- DC power supply at turn ON ··················································································· 20
- 4A 25A 8A 50A Current
- 12A 75A Current 16A 100A Current
- 20A 125A Current 24A 150A Current
- 28A 175A Current 32A 200A Current
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
