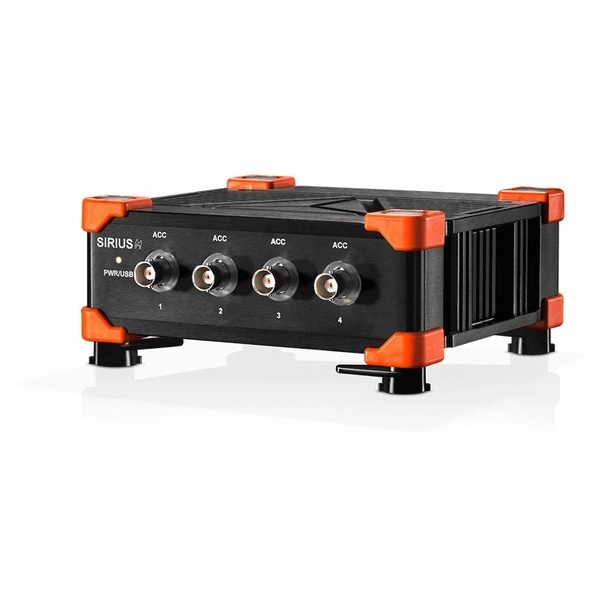

DEWESOFT SIRIUS MINI 포터블 4채널 사운드 & 진동분석기
DEWESOFT SIRIUS MINI Portable 4-Channel Sound and Vibration Analyzer
Small, portable, USB-powered 4-channel data collection system for sound and vibration measurement. SIRIUS mini offers an amazing 160 dB dynamic range and is the perfect portable vibration analyzer or acoustic noise measurement device.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
데베소프트 ・ DEWESOFT
SIRIUS MINI
포터블 4채널 사운드 & 진동분석기
SIRIUS MINI Portable 4-Channel Sound and Vibration Analyzer
- USB Powered on the Go
SIRIUS mini does not require any external power supply. It can be powered straight from the USB connection, for example, a laptop. Two USB cables are included. One for power, THE second for data transfer.
- Small Form Factor
SIRIUS mini is our smallest 4-channel data acquisition system. It fits into one hand, is light, and is easily transported in a backpack. Still, in this small box, you can find the power of a giant.
- IEPE and Voltage Inputs
The SIRIUS mini data acquisition system is configured with four high dynamic analog inputs for direct voltage or IEPE/ICP signals. Amplifiers are equipped with two 24-bit Sigma-Delta ADC's with a 200 kHz sampling rate per channel. DualCoreADC® technology offers an astonishing 160 dB dynamic range.
- SuperCounter® Inputs
Each counter channel input is capable of three digital inputs, one event counter, encoder, period, pulse-width, duty-cycle, and precise frequency and angle measurement using patented SuperCounter® technology.
- Unmatched Price
SIRIUS mini offers a very attractive ratio between price and quality. It ships with the highest quality signal conditioning amplifiers and is bundled with award-winning data acquisition software.
- Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
- Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
 |
SIRIUS mini is a very compact and portable data acquisition system. SIRIUS mini is USB powered and can simply be powered from your laptop computer. The 4-channel instrument is perfectly suitable for a range of different test and measurement applications, such as:
SIRIUS mini can also easily be used as a portable vibration analyzer for preventive maintenance or similar field measurements. |
SIRIUS mini offers 4 high dynamic analog inputs based on the SIRIUS® DualCoreADC® technology. These inputs offer astonishing 160 dB dynamic range. All four analog channels can directly measure voltage and IEPE/ICP® signals. This offers perfect compatibility for connecting IEPE/ICP® accelerometers, microphones, and/or voltage sensors at the same time.
SIRIUS mini offers up to one counter/encoder/digital input based on Dewesoft's patented SuperCounter® technology. This gives you the ability to connect all sorts of counter, encoder, or tacho sensors to precisely measure speed, RPM, angle, and frequency. The same counter input can be used to measure 3 digital input lines. |  |
 |
SIRIUS mini is the perfect data acquisition instrument for sound and noise recording. Input amplifiers offer an amazing 160 dB dynamic range. You can directly connect IEPE/ICP microphones and sound intensity probes. SIRIUS mini is bundled with award-winning DewesoftX data acquisition software which features powerful analysis features for sound and noise (NVH) measurements. DewesoftX offers features for applications like:
|
Data acquisition systems are built around our world-class SIRIUS® signal conditioning technology and offer the same top-performing technologies:
Note: galvanic isolation does not apply to SIRIUS mini and MINITAURs instruments. |  |
The DualCoreADC® technology solves often-faced problems with signal measurement:
The input signal can be higher than expected by the signal conditioner (out-of-range) and therefore clipped by the ADC. This will result in an incorrect measurement and will require you to repeat the test all over again. DualCoreADC technology prevents these problems. Each channel amplifier has two A/D converters that measure the high and the low gain of the input signal in parallel. This results in the full possible measuring range of the sensor and prevents the signal from being clipped. With DualCoreADC technology, SIRIUS data acquisition systems achieve more than 130 dB signal-to-noise ratio and more than 160 dB in dynamic range. This is 20x better than 24-bit DAQ systems and 20x less noise. |
Dewesoft data acquisition systems utilize a patented and registered trademark technology called SuperCounter®. Counter inputs can measure the RPM and angle of rotating machines. In comparison to standard counters, which only output integer numbers one sample later (e.g. 1, 1, 2, 2, 3, 4), the Dewesoft SuperCounter inputs are able to extract accurate values like 1.37, 1.87, 2.37, etc. fully synchronized for time and amplitude. This is done by measuring the exact time of the rising edge of the signal with an additional counter. Our SuperCounter inputs work on a 102.4 MHz time base, independent of the current analog sampling rate. Counter inputs are fully synchronized with analog, CAN bus, and other data sources to enable easy applications like balancing, order tracking, and torsional vibrations. |
 |
SIRIUS MINI instrument has a convenient LED ring around the input BNC connector. When an IEPE sensor (e.g. accelerometer or microphone) is connected, the device will constantly check the current flow to the sensor and will turn the LED bright green or bright red, depending on if the sensor's impedance is okay. With the LED indicator you have immediate visual feedback if all your connected IEPE sensors and the sensor cable are working correctly. This is just another small but very useful detail that makes your life as a test engineer a little bit easier. |
SIRIUS mini does not require any external power supplies or adapters. Simply plug it into your PC laptop computer via the included USB cable, and it will receive enough power for full functionality. Once connected you are ready to start measuring. USB can provide enough power to power the device itself and also provide excitation to connected IEPE sensors like accelerometers and microphones. SIRIUS mini package includes two USB cables. One cable is used for data transfer while the other is for powering the device. |  |
 |
SIRIUS mini is so small and light that you can easily fit it into a laptop bag or backpack:
But it is not only small and light. SIRIUS mini is also built to last. It features aluminum chassis which is CNC milled out of a single aluminum block. The chassis and electronics were thoughtfully tested inside our state-of-the-art testing labs. SIRIUS mini has been tested for vibration on the shaker table and impact test machine so that you will be able to work without worries, no matter the environment you are testing in. |
SIRIUS MINI DEWESOFT SIRIUS MINI SIRIUS MINI DEWESOFT 데베소프트 SIRIUS MINI SIRIUS MINI 데베소프트 데베소프트 시리우스 MINI 시리우스 MINI 데베소프트 DEWESOFT 시리우스 MINI 시리우스 MINI DEWESOFT
