IKONIX EAB SERIES 모듈러 프로그래밍 AC 파워소스 ☆ 가격문의
111,111원

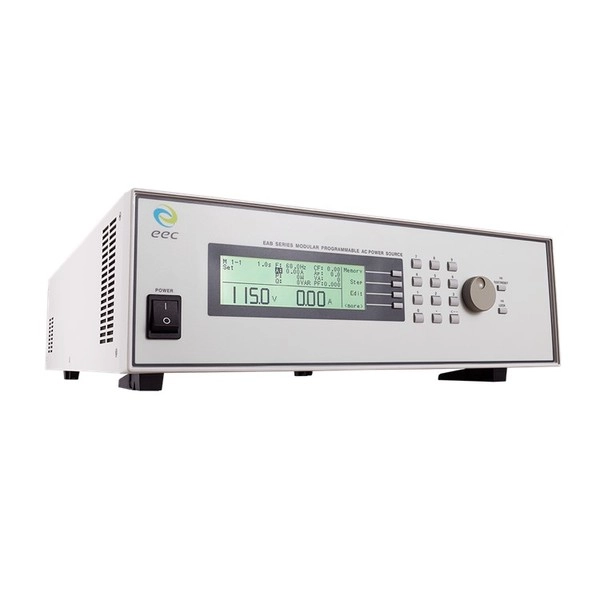

IKONIX EAB SERIES 모듈러 프로그래밍 AC 파워소스
IKONIX EAB SERIES Programmable AC Power Source
- 용량 1-6kVA
- 전압 0-300V (600V opt)
- 전류 4.6-55.2A
- 기타 3대까지 병렬확장 가능한 Modular Programmable AC Power Source
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
아이코닉스 ・ IKONIX
EAB SERIES
모듈러 프로그래밍 AC 파워소스
EAB SERIES Programmable AC Power Source
Capacity : 1KVA - 6KVA
- Built - in input active Power Factor Correction circuit (PF > 0.97), and be provided with large input voltage range 90 - 264V
- Enhanced ability to parallel or link with several units to expand capacity or form three phases output
- Adjustable AC output voltage 0 - 300V / frequency 40 - 1000HZ
- Large 240 X 64 Graphic LCD display
- Waveform distortion less than 1% on resistance load
- Enhanced crest factor. The rate is up to 3 : 1 at rating current output
- Fast recovering time, 0.4 milliseconds
- Line and load regulation maintains the output voltage within 0.5% of setting
- Programmable 50 memories and 9 steps per memory, for interconnection between each step to simulate different test conditions of the DUT
- Auto loop cycle, up to 999900 cycles
- For Aging or Life test on DUT, the user able to change the timer either in second, minute or hour
- Unique regulation function in providing capability to turn on high inrush current loads such as motors and compressors
- Capable to withstand inrush current up to 4 times of rated current and able to maintain 1000ms without protection
- Over Current Fold Back Mode (Response time < 1400mSec)
- Optional PLC remote interface control, including TEST / RESET and recall 7 memories quick output
- Built - in PLC remote output interface
- Protections and alerts for over current, short circuit, over voltage, over power, over temperature and reverse current
- Front panel software calibration
- Capable to set the starting angle, voltage dips, short interruptions and voltage variations to meet test application of IEC61000 - 4 - 11
- Adjust voltage / frequency setting via Rotary Knob when output is turn ON
- Optional GPIB, RS232 & USB interface
- AC and DC output selection to fulfill the test application needs in several power modes
- Comprehensive measurement of V, Irms, Ipk, W, VA, VAR, PF, CF of current etc.
- Memory and keypad lock functions with password setting
EAB SERIES EAB SERIES IKONIX IKONIX EAB SERIES EAB SERIES 아이코닉스 아이코닉스 EAB SERIES EAB SERIES 이코닉스 이코닉스 EAB SERIES EAB EAB IKONIX IKONIX EAB EAB 아이코닉스 아이코닉스 EAB EAB 이코닉스 이코닉스 EAB IKONIX EAB 140 IKONIX EAB 160 IKONIX EAB-140 IKONIX EAB-160
