에이이피 트랜스듀서 ・ AEP TRANSDUCERS
BIT2
디지털 압력게이지

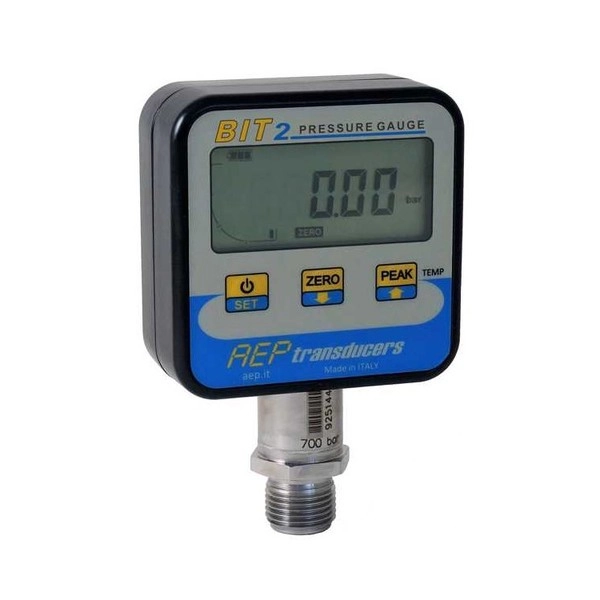

BIT2 Digital Pressure Gauge
RELATIVE pressures from 100 mbar to 3000 bar ABSOLUTE pressures from 1 bar to 10 bar DIFFERENTIAL pressures from 10 bar to 700 bar Relative VACUUM measure -1 bar TEMPERATURE measures from 0 to 50°C Measurement of the temperature of the fluid linearity and hysteresis 0.20 % standard VERSION linearity and hysteresis 0.10 % high accuracy High mechanical strength Suitable for dynamic and static applications LOW COST BIT2D (differential whit 2 TP1 pressure transducers)
Metal case Process coupling 1/2″Gas male The sensitive part in contact with pressure is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP65 Non-rechargeable batteries with 1 year autonomy Programmable resolution, digital filter and measurement units ZERO and PEAK functions (Active in PRESSURE and VACUUM) Analog pressure indication always active (bar graph) External power supply (option) USB output (option) Built-in case (option)
ACCESSORIES
Shock resistant silicone COVER External power suply Calibration report ACCREDIA certificate Carrying case
Software: WinTEST1 Quick analyzer Quick analyzer Light Software that works directly with the pressure gauge and supports the operator in the various test functions like, analysis, over time monitoring, data storage, DATA LOGGER management, transferring data to Microsoft Excel and so on.
Software: PresKAL Software dedicated to the calibration and metrology confirmation of pressure gauges, pressure transducers, pressure transmitters and pressure switches. The calibration procedure and calculations are made in accordance with the requirements of the “Guide for the calibration of pressure gauges” EA-10/17. Evaluation of the uncertainty of calibration is performed according to the requirements of the UNI CEI ENV 13005.
GPM Manual pressure generators used to compare the measurements between the sample pressure gauge and the instrument calibration. Ideal for performing calibration and metrological confirmation of pressure gauges, pressure transducers, pressure transmitters and pressure switches.
BIT2 BIT2AEP AEPBIT2 BIT2AEP TRANSEDUCERS AEP TRANSEDUCERSBIT2 BIT2에이이피 에이이피BIT2 BIT2에이이피 트랜스듀서 에이이피 트랜스듀서BIT2
