수토아이텍 ・ SUTO-iTEC
S520
휴대용 노점계(-100..+20℃td)

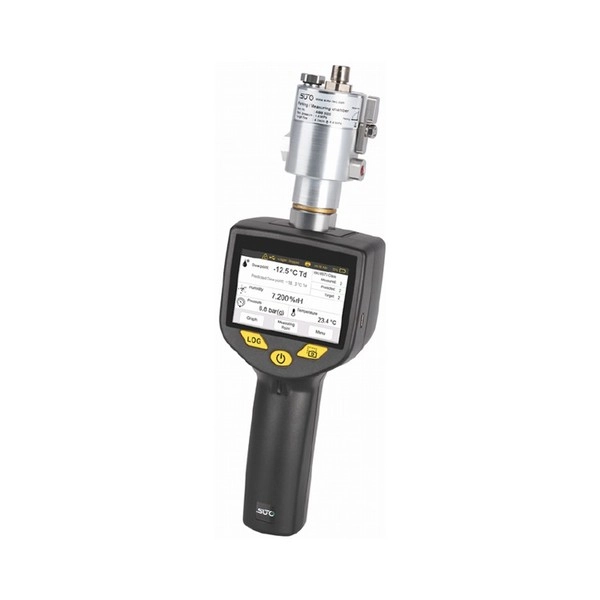

S520 Portable Dew Point Meter
SUTO-iTEC의 새로운 휴대용 노점계 S520이 출시되었습니다.
Standard Ver.의 경우 -100 ~ +20℃td을 단 1개의 센서로 측정할 수 있으며 S505의 거의 모든 기능을 가지고 있습니다.
S520 S520 SUTO SUTO S520 S520 SUTO ITEC SUTO ITEC S520 S520 SUTO-ITEC SUTO-ITEC S520
■ 제품 사양 (Specifications)
SUTO-iTEC 제품 데이터시트의 핵심 사양입니다.
- -100 ... +20 °C Td with pressure sensor as standard version predict the end value before actually reaching the end value.
- -50 ... +50 °C Td without pressure sensor as economic version
- Unique Measuring chamber with parking function as standard the smart features option, users also get a 5 Megapixel camera and
- Measuring range Standard: -100 ... +20 °C Td
- Pressure*: 0 ... 1.5 MPa(g)
- Temperature: -30 ... +50 °C
- Dew Point Sensor Sensor A1370: QCM + Polymer ; Sensor A1371: Polymer
- Temperature Sensor Pt100
- Pressure Sensor Piezo resistive type (only with Sensor A1370)
- Accuracy Dew point: +/- 1 °C Td (0 ... 20 °C Td) Temperature: +/- 0.3 °C
- +/- 2 °C Td (-60 ... 0 °C Td / +20 ... +50 °C Td) Pressure: 0.5 % FS
- Operating Pressure -0.1 ... 1.5 MPa(g) (at least 0.3 MPa is needed for the measuring chamber supplied with the instrument)
- Measured gas (Medium) Air, CO₂, N₂, Argon (CO₂ measurements with the A1371 module are limited to -40 °C Td)
- Operating Parameters Medium Temperature: -30 ... +70 °C / Ambient Temperature: 0 ... +40 °C / Ambient Humidity: 0 ... 80 % rH
- Transport & Storage Transport Temperature: -30 ... +70 °C / Storage Temperature: -20 ... +50 °C
- Weight 2.7 kg (complete set in transport case)
- Process Connection G1/2” for direct sensor connection, Measuring chamber with 6 mm hose quick coupling
- Battery Operating time on one charge: ~8 h / Charging time until full: ~3 h
- Display 3.5” color LCD Touch screen
- *at least 0.3 MPA is needed for the measuring chamber supplied with the instrument. For low pressure measurements below 0.3 MPa
- please choose the by-pass measuring chamber A699 3501.
- A1370 A -100 ... +20 °C Td Standard range sensor unit, with integrated pressure sensor -0.1 ... 1.5 MPa
- A1371 B -50 ... +50 °C Td Economic range sensor unit, without integrated pressure sensor
- A1372 B With wireless printer for measurement printouts on site
- A1373 B With smart features (Measurement snapshot, Dew point end value prediction, Camera)
- S520 Handheld meter with data logger, measuring chamber, incl. transport casing, -100 ... +50 °C Td Standard range sensor unit
- A699 3501 By-pass measuring chamber with parking function, 0 ... 1.0 MPa, 6 mm hose quick connector as in- and outlet
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
📄 기술자료 다운로드
