SUPMEA 슈미아 WSR550 80GHz 레이다 수위/거리 측정기 ☆ 가격문의
111,111원

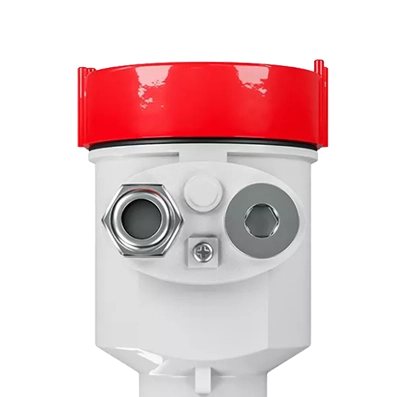

SUPMEA WSR550 80GHz 레이다 수위/거리 측정기
SUPMEA WSR550 76-81GHz Radar level transmitter
- WSR550 radar level transmitter supports four-wire and two-wire applications, the product has multiple models, the range can reach 60m. Equipped with a 76-81GHz frequency band, the WSR550 provides superior performance in challenging environments where other level measurement technologies may fail. Its high-frequency signal allows for better penetration through dust, vapor, and foam, ensuring accurate readings even in harsh conditions.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
슈미아 ・ SUPMEA
WSR550
80GHz 레이다 수위/거리 측정기
WSR550 76-81GHz Radar level transmitter
Characteristics
Features
- Range: 0~60m
- Accuracy: ±1mm
- Application: solid level measurement,water level measurement,liquid level measurement
- Frequency Range: 76GHz~81GHz
Product Details
The 76-81GHz series products refer to frequency modulated continuous wave (FMCW) radar products operating at 76-81GHz, supporting four-wire and two-wire applications. The product has multiple models, the range can reach 120m, and the blind zone can reach 8 cm. Because of its higher operating frequency and shorter wavelength, it is especially suitable for solid applications. The working method of transmitting and receiving electromagnetic waves through the lens has unique advantages in high dust and harsh temperature environments (+150℃). The instrument provides flange or thread connection, which makes installation convenient and easy.
SPECIFICATION
| Product | Radar level meter |
| Model | WSR550 |
| Measure range | 0.08~30m,0.3~60m, others |
| Beam angle | 3°/8° |
| Installation | Thread, Flange |
| Medium Temperature | -40℃~150℃(high temperature customized） |
| Process Pressure | -0.1-2MPa |
| Accuracy | ±1mm |
| Ingress protection | IP67 |
| Frequency Range | 76GHz~81GHz，5GHz FMCW bandwidth |
| Signal Output | 4-20mA |
| RS485 | |
| Power supply | 15~28VDC |
| Communication | Modbus/HART |
| Humidity | ≤95%RH |
| Enclosure | Aluminum alloy, stainless steel |
| Fault output | 3.8mA, 4mA, 20mA, 21mA, hold |
| Size | Ø100*270mm |
| Weight | 2.480Kg/2.995Kg |
| Cable entry | M20*1.5 |
| Antenna type | Lens antenna/anti-corrosive antenna / flange isolated by quartz |
| Recommended cables | AWG18 or 0.75mm² |
| Minimum measured dielectric constant | ≥2 |
WSR550 SUPMEA SUPMEA WSR550 슈미아 WSR550 WSR550 슈미아
📄 기술자료 다운로드
■ 제품 사양 (Specifications)
SUPMEA WSR550 제품 데이터시트의 핵심 사양입니다.
- 3.3.Flangewithencapsulatedantennasystem(normaltemperature&press).5
- The series is FMCW radar operating at 76-79.3GHz,
- which has a maximum measuringrangeof120mandnearlyzeroblindzone.
- 5GHz working bandwidth means higher measurement resolution and
- Frequency 76GHz~79.3GHz, 5GHzFMCWbandwidth
- Measuringrange 0.08m~30m
- Measurementaccuracy ±1mm
- Power 24VDC
- Powerconsumption ≤2W
- Signaloutput (4~20)mAorRS-485
- Faultoutput 3.8mA,4mA,20mA,21mA,hold
- Fieldoperation/ 128×64dotmatrixdisplay/4buttons
- Humidity ≤95%RH
- Processtemperature T0:-40~85℃; T1:-40~150℃;
- Processpressure (-0.1~2)MPa
- Protectionclass IP67
- Weight 2.480Kg/2.995Kg
- Chapter3Dimension
- Chapter 3 Dimension
- Fig.1Threadconnectionwith3°beamwidth(normaltemperature)
- Fig.2Threadconnectionwith3°beamwidth(hightemperature)
- Fig.3UniversalType(Normaltemperaturetype)
- Fig.4UniversalType(Hightemperaturetype)
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
